Objective
This blog explains why sheets warp after laser cutting and how to flatten sheet metal before it moves to the next production stage. Written for fabricators and buyers evaluating leveling equipment.
Key Takeaways
- Laser cutting heats metal unevenly, which is the main reason sheets warp after cutting.
- Thin gauge sheets and long, narrow parts warp the most since they have less mass to absorb heat stress.
- Manual hammering or torch heating works for one-off sheets but isn’t reliable for production runs.
- A sheet metal leveling machine uses multiple roller passes to apply even pressure, removing warp without damaging the sheet.
- Check roller count, adjustability, and thickness range before buying a leveling machine.
Table of Contents
- Why Does Sheet Metal Warp After Laser Cutting?
- What Does It Mean to Flatten Sheet Metal?
- How Does a Leveling Machine Flatten Sheet Metal?
- Leveling Machine vs. Straightening Machine: What’s the Difference?
- Manual Methods vs. Machine Leveling
- What to Look for When Buying a Leveling Machine
- FAQ
- Conclusion
A batch of laser-cut brackets comes off the machine looking perfect. Clean edges, tight tolerances, exactly to spec. Then someone stacks them on a table and half of them rock back and forth like a seesaw.
That warp wasn’t there before cutting. It showed up because of the process itself, and now every part needs fixing before it can be welded or assembled. This happens more than most buyers expect, especially with thin gauge sheet or long, narrow cuts. The fix isn’t complicated once you understand the cause, and that’s what this guide covers.
Why Does Sheet Metal Warp After Laser Cutting?
Laser cutting heats a narrow strip of metal to very high temperatures in seconds. That heat doesn’t spread evenly, so the cut line expands while the surrounding metal stays cool.
This creates internal stress. As the sheet cools, stressed areas pull against the rest of the material, and the sheet bows or twists. Thinner sheets warp more because there’s less mass to resist the pull. Long, narrow parts warp more too, since they have less rigidity holding their shape.
Nesting layout plays a role as well. Parts cut close together, or in a pattern that removes material unevenly, tend to warp worse than a balanced layout. None of this means the laser cutter did anything wrong. It’s physics, and it’s why flattening exists as a step.
What Does It Mean to Flatten Sheet Metal?
Flattening removes the warp or wave left after cutting, without changing thickness or damaging the surface. The goal is a sheet that sits flat with no visible rock.
This matters downstream. A warped sheet won’t feed correctly through a press, and it won’t sit square for welding. Used as-is, that distortion carries into the final part, where it’s far more expensive to fix. Good flattening restores flatness without adding new stress, which is where manual methods often fall short.
How Does a Leveling Machine Flatten Sheet Metal?

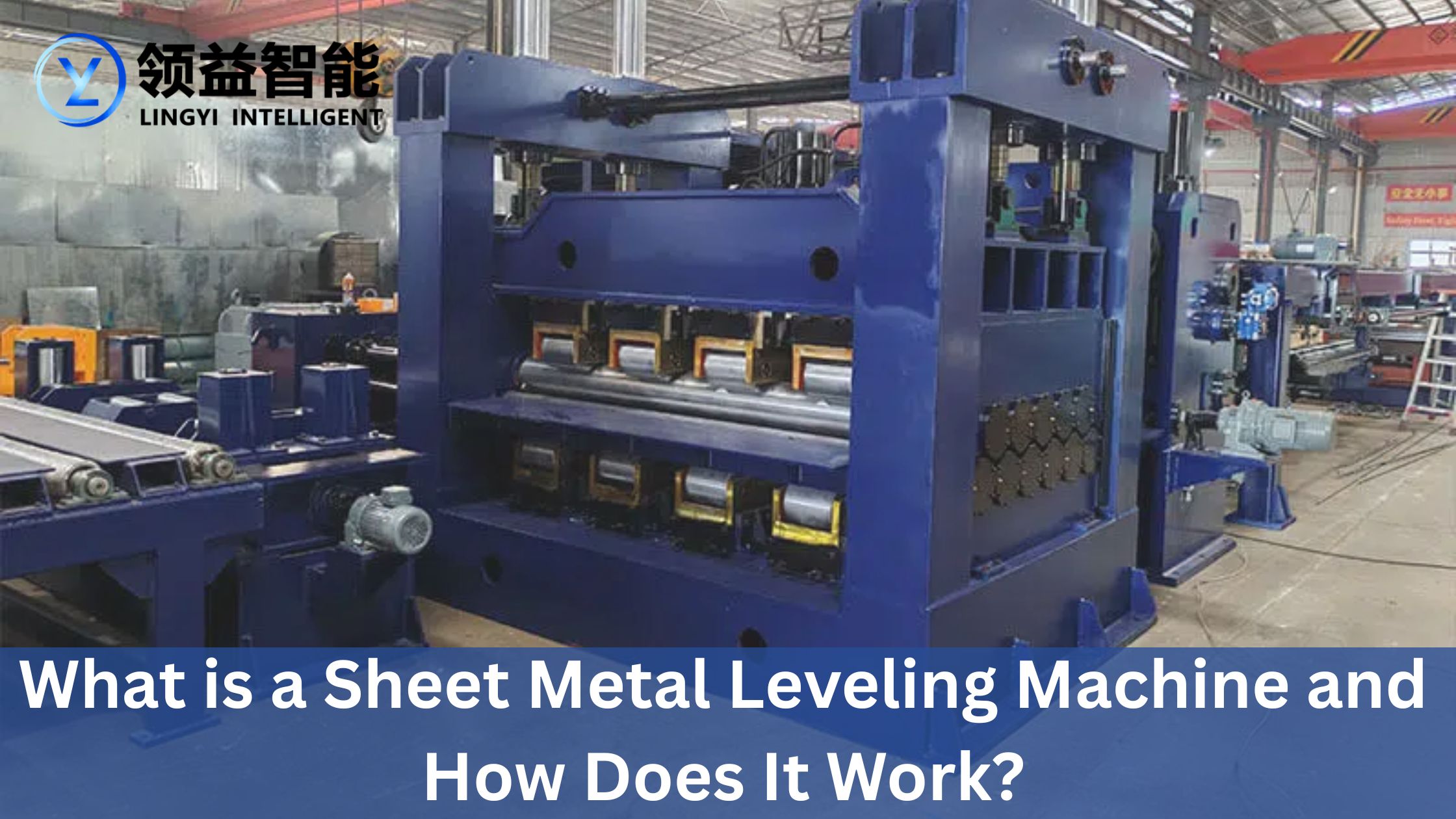

A Sheet Metal Leveling Machine passes the sheet through staggered rollers, each applying a small counter-bending pressure. Instead of one hard correction, the sheet gets several gentle ones that flex out the warp without overstressing it.

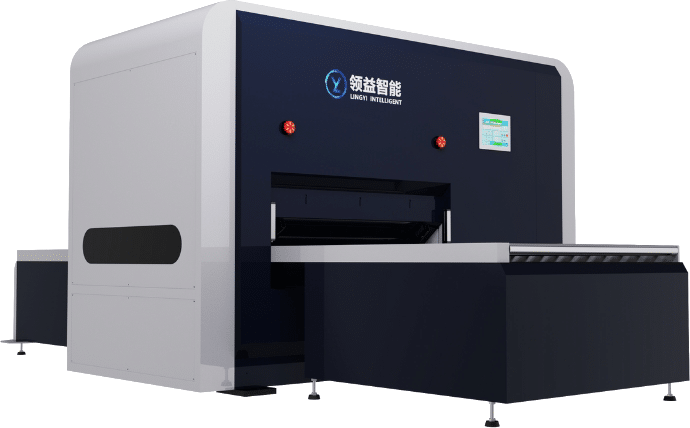

Roller count matters. More rollers mean smaller, more gradual bends and a flatter result. A CNC Leveling Machine adjusts roller gap and pressure automatically based on the thickness entered into the control panel, which is hard to match by hand across a large batch.

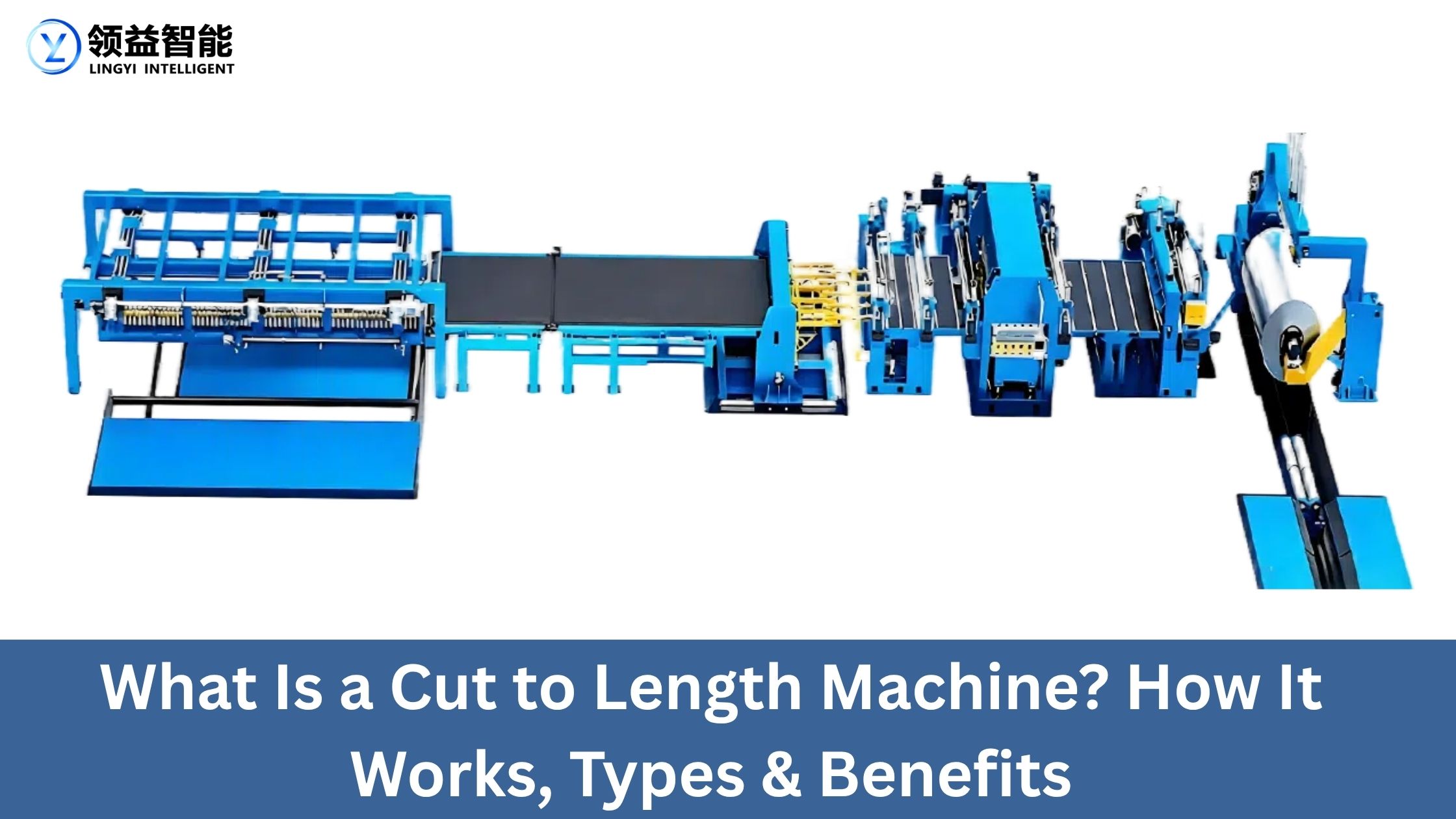

For coil-fed operations, a Cut to Length Line combines uncoiling, leveling, and cutting in one pass, so the sheet is already flat when it’s cut to size. Where coil needs slicing into narrower strips first, a Slitting Line Machine handles that step before leveling.

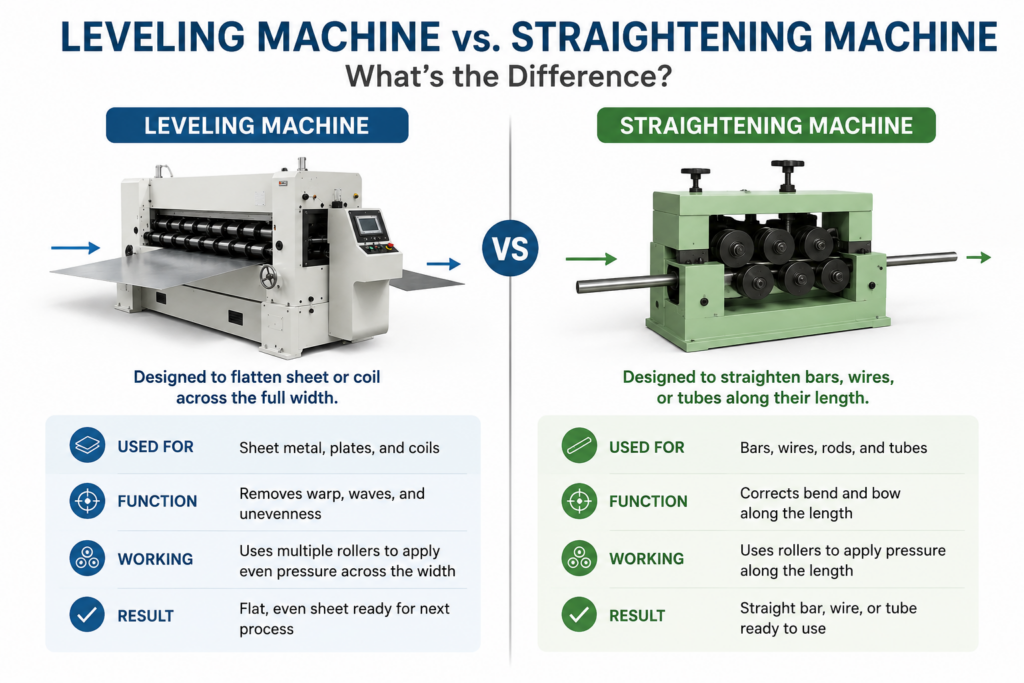

Leveling Machine vs. Straightening Machine: What’s the Difference?
Both correct distortion, but they aren’t the same tool, and this trips up a lot of first-time buyers.
A leveling machine uses multiple rollers to flatten sheet or coil across its full width, which is what’s needed after laser cutting. A straightening machine corrects bar stock, wire, or tube along its length, focused on bend rather than flatness. Knowing the difference between a leveling machine and a straightening machine before buying avoids a costly mismatch. If your material is flat sheet with warp, a leveler is the right tool.
Manual Methods vs. Machine Leveling
Small shops sometimes flatten one-off sheets with a mallet, weighted plates, or a torch. It works, up to a point.
Manual makes sense when: it’s one or two sheets, the warp is minor, and there’s no tight flatness tolerance downstream.
Manual falls short when: results need to be repeatable, torch heat risks adding new stress or discoloring the surface, volume is high, or the material is thin enough to dent by hand.
For repeat production, a machine is the reliable choice. This is where precision metal fabrication shops draw the line between a quick manual fix and what goes straight to a leveler.
What to Look for When Buying a Leveling Machine
- Thickness range: confirm it handles your thinnest and thickest gauges.
- Roller count: more rollers, more even the result.
- Adjustability: CNC control switches between material specs without manual resets.
- Line width: match to your widest sheet or coil, with margin.
- Integration: check compatibility with existing cut-to-length or slitting lines.
- After-sales support: spare parts and response time matter once it’s running daily.
Buyers researching the best sheet metal leveling machine for manufacturers should ask for a sample test run before committing. Seeing your own material flattened tells you more than a spec sheet ever will. Once sheets are flat and cut, many lines add a deburring stage. A Precision Parts Deburring Machine removes sharp edges left from cutting, ahead of welding or assembly.
Leveling adds a step, and that step has a cost. But warped parts that reach welding cause fit-up problems, rework, and sometimes scrap, which costs more than running the batch through a leveler once. Good metal fabrication equipment protects the value of every step that came before it.
Frequently Asked Questions :
Q1: Can I flatten sheet metal after it’s already welded into an assembly? Not effectively. Once parts are welded, rollers can’t reach the individual sheet properly. Flattening has to happen before welding.
Q2: Does leveling affect the laser-cut edge quality? No. Leveling applies pressure across the flat surface only. The cut edge and dimensional accuracy stay the same.
Q3: How thin can a sheet be before leveling gets risky? Under 0.5mm needs a machine built for that range with fine roller adjustment, or it can crease.
Q4: Is one pass through the leveler always enough? Usually, for moderate warp. Heavy distortion sometimes needs a second, lighter pass instead of one aggressive one.
Q5: Do I need separate machines for coil versus cut sheets? Not always. Many leveling lines handle both, especially built into a cut-to-length setup.
Conclusion
Warped sheets after laser cutting aren’t a defect in your cutting process. They’re a predictable result of heat and stress, and they have a predictable fix. Getting flattening right, with equipment matched to your volume and material range, keeps a fast laser cutter from becoming a bottleneck two steps later.
If your team is still fighting warped sheets by hand, it’s worth a conversation. iMachine builds leveling, cutting, and deburring equipment for exactly this stage of production, with sample testing available before you buy. Reach out to the iMachine team to discuss your material.
