Whether you need metal sheets of set lengths for making parts, equipment, or structures, a cut to length machine can help turn metal coils into flat sheets that are ready for further processing.
Not only does it cut metal strips into sheets of required lengths, but it can also help level the material before cutting. This allows manufacturers to produce sheets with more consistent dimensions as well as a flatter surface, based on the machine setup and material being processed.
By combining the feeding, leveling, measuring, cutting, and stacking of metal strips in one production process, a cut to length machine makes it easier to turn metal coils into sheets of specific lengths. These machines are widely used in metal processing where coils need to be converted into sheets of specific lengths.
What Is a Cut to Length Machine?
Also known as a steel coil cut to length line, CTL line, or coil cut to length line, cut to length machines are metal processing systems used to turn metal coils into flat sheets of set lengths. They take the coiled metal strip through a series of processing stages, where it can be leveled, measured, and cut according to the required sheet size.
These machines can be used to process materials such as steel, stainless steel and aluminum, depending on their design and working range. They are used in metal processing and manufacturing where sheets with set sizes are needed.
A cut to length machine can bring several steps together in one line. This includes coil feeding, leveling, measuring, cutting, and stacking.
Did You Know?
A cut to length machine can be set up to handle different coil widths and material thicknesses, depending on its design. This allows manufacturers to select a machine that matches the size and type of metal they need to process.

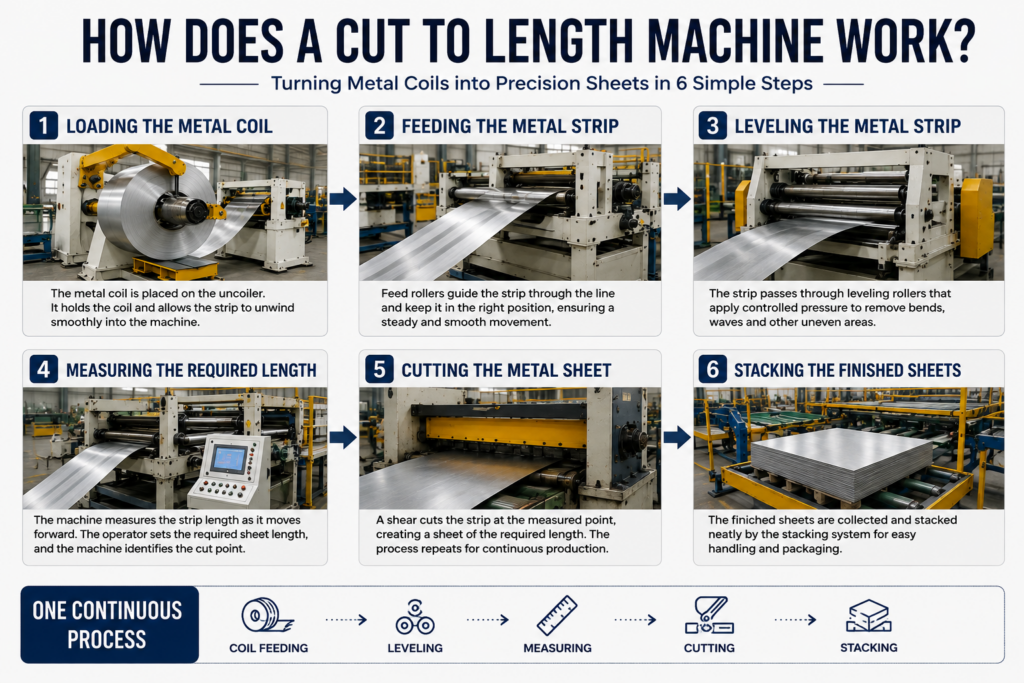

How Does a Cut to Length Machine Work?
By moving the coiled metal strip through a series of connected stages, a cut to length machine unwinds, levels, measures, and cuts the material into sheets of the required length. Each stage prepares the material for the next step to help maintain a steady and accurate cutting process.
Here’s how a cut to length machine works.
Step 1: Loading the Metal Coil
Before the cut to length process begins, the metal coil is placed onto the uncoiler. This unit holds the coil in place and allows the material to unwind as the machine starts operating.
The uncoiler lets the metal strip unwind at a steady rate and move into the machine smoothly. From there, the strip travels toward the feeding section, which guides it into the next stage of the process.
Step 2: Feeding the Metal Strip
After the coil is unwound, the metal strip moves into the feeding section of the machine. Feed rollers guide the strip through the line as well as help keep it in the right position.
The feeding section keeps the strip moving at a steady rate as it travels toward the leveling unit. From there, the strip enters the leveling rollers for the next stage of processing.
Step 3: Leveling the Metal Strip
As the strip enters the leveling unit, it moves between a series of rollers that apply controlled pressure at different points. This helps reduce bends, waves as well as other uneven areas in the material.
The rollers work across the strip as it moves forward, helping create a flatter and more even surface. Once the strip has been leveled, it continues toward the measuring section so its required length can be set.
Step 4: Measuring the Required Length
The leveled metal strip then reaches the measuring section, where the machine tracks how far the material has moved. After that, operators set the sheet length according to the production needs as well as requirements.
As the strip reaches the set measurement, the machine identifies where the cut should be made. The strip then moves toward the cutting section, where it is cut into a sheet of the required length.
Step 5: Cutting the Metal Sheet
The cutting unit uses a shear to cut the metal strip at the measured point. This creates an individual sheet with the required length while the remaining strip continues moving through the machine.
The measuring and cutting process then repeats as the strip moves forward, allowing multiple sheets to be produced from the same coil. Each finished sheet leaves the cutting section and moves toward the stacking area for collection.
Step 6: Stacking the Finished Sheets
After the cutting stage, the sheets move into the stacking section, where the stacking system of the machine collects as well as arranges them into a neat pile. Each new sheet is placed on top of the previous one as the cutting process continues.
As the cutting process continues, each new sheet is added to the stack until the required quantity is reached.
Benefits of a Cut to Length Machine
By turning metal coils into sheets of set lengths, a cut to length machine makes sheet production easier and more consistent. These machines can also help reduce waste and improve the quality of the finished sheets.
Here are four major benefits of a cut to length machine.
Accurate Sheet Lengths
One of the major benefits of a cut to length machine is its ability to produce sheets with accurate lengths. Its measuring system tracks the metal strip before each cut, helping maintain the required sheet size.
This helps reduce differences between individual sheets and makes the finished material more suitable for production jobs that require consistent dimensions.
Better Sheet Flatness
In addition to cutting sheets to accurate lengths, cut to length machines also help improve the flatness of metal sheets. The leveling section of the machine reduces bends and waves in the metal strip before it reaches the cutting stage.
This helps produce flatter sheets that are easier to use in later production work where a more even surface is needed.
Less Material Waste
Since cut to length machines measure the metal strip before each cut, they can help reduce unnecessary leftover material from the coil. The machine cuts the strip according to the required sheet length, which helps use the available metal more effectively.
This can reduce material waste during sheet production and allow manufacturers to get more usable sheets from the same coil.
Did You Know?
Cut to length machines can produce less material waste than manual cutting methods because they use set measurements for each cut. This helps reduce errors that can cause unwanted offcuts during sheet production.
Faster Production
A cut to length machine brings feeding, leveling, measuring, cutting, and stacking into one connected process. This allows metal sheets to move through several production stages without separate manual handling between each step.
These machines can repeat the same process for multiple sheets, helping manufacturers produce a larger number of sheets within a set production period.
Conclusion
By turning metal coils into sheets of set lengths, a cut to length machine helps manufacturers prepare metal sheets for different production needs. These machines combine feeding, leveling, measuring, cutting, and stacking to produce sheets with accurate lengths, better flatness, and consistent results.
Are you looking for a reliable cut to length machine for your manufacturing needs? Dongguan Lingyi Intelligent Machine Co., Ltd offers high-quality cut to length machines designed to deliver accurate sheet lengths, better sheet flatness and less material waste.
Frequently Asked Questions
Q1.What is a cut to length machine used for?
A cut to length machine is used to turn metal coils into flat sheets with set lengths. It feeds, levels, measures, cuts and stacks the material as part of one connected process.
Q2.What materials can a cut to length machine process?
A cut to length machine can process materials such as steel, stainless steel, and aluminum, depending on the machine design and its working range.
Q3.Does a cut to length machine need an operator?
Yes. An operator is needed to load the coil, set the required machine parameters, monitor the process, and check the finished sheets.
Q4.What is the difference between a cut to length machine and a slitting machine?
A cut to length machine cuts a metal coil into sheets of set lengths. A slitting machine cuts a wider metal coil into narrower strips. The main difference is the type of cut each machine makes and the form of the finished material.
