Objective
Give fabrication shops and precision parts manufacturers a working framework for removing thick burrs from heavy metal plates, covering the machine specs and technique that determine whether an edge passes inspection the first time.
Key Takeaways
- Thick burrs come mostly from cutting parameters, not just material hardness. Fixing the cause reduces what downstream sanding has to fix.
- A belt sander machine clears large flat surfaces and long edges far faster than an operator with a grinder ever will.
- Belt speed and grit have to match plate thickness. Get it wrong and you either leave the edge uneven or scorch it.
- Running deburring and polishing in one pass saves a full production step on parts headed for coating or final assembly.
- Cleaner cuts mean less burr for the machine to remove, which keeps the whole line moving faster.
A 40mm steel plate comes off the laser cutter with a burr running the full length of one edge. Someone hands it to an operator with an angle grinder. Twenty minutes later, the edge is uneven, scorched in two spots, and still not flat enough to move to the next station.
That scene plays out in fabrication shops every week. Manual deburring doesn’t hold up on heavy plate, and the inconsistency it leaves behind is exactly what fails a quality check on an aerospace or automotive job.
What follows is what actually works on thick burrs. Not the generic deburring machine written for 1mm sheet metal.
- Thick burrs on heavy plate need a belt sander machine, not hand tools.
- Match grit and belt speed to plate thickness, or you’ll get an uneven edge or heat distortion.
- Automated deburring has cut rework time by up to 25% on real production lines.
- Reduce burr size at the cutting stage first, and your deburring equipment has less work to do.
What Causes Thick Burrs on Heavy Metal Plates?
Thick burrs mostly trace back to cutting parameters, not operator error. Heavier plate holds more material at the cut edge, and that material has further to travel before it separates cleanly.
The usual culprits:
- Worn cutting tooling that pushes material apart instead of shearing it
- Cutting speed set too high for the thickness, which builds up heat and deforms the edge
- Laser or plasma power settings mismatched to the material, leaving re-solidified metal along the cut line
- Hardness variation within the plate, common in stainless and high-carbon alloys
- Punch and die clearance that’s worn past tolerance, which grows burr height gradually until someone notices
A 0.5mm burr on a thin sheet is a five-second fix. Scale that up to an 80mm plate and it’s several millimetres of hardened material that a hand file has no business touching.
How Does a Belt Sander Machine Remove Thick Burrs?

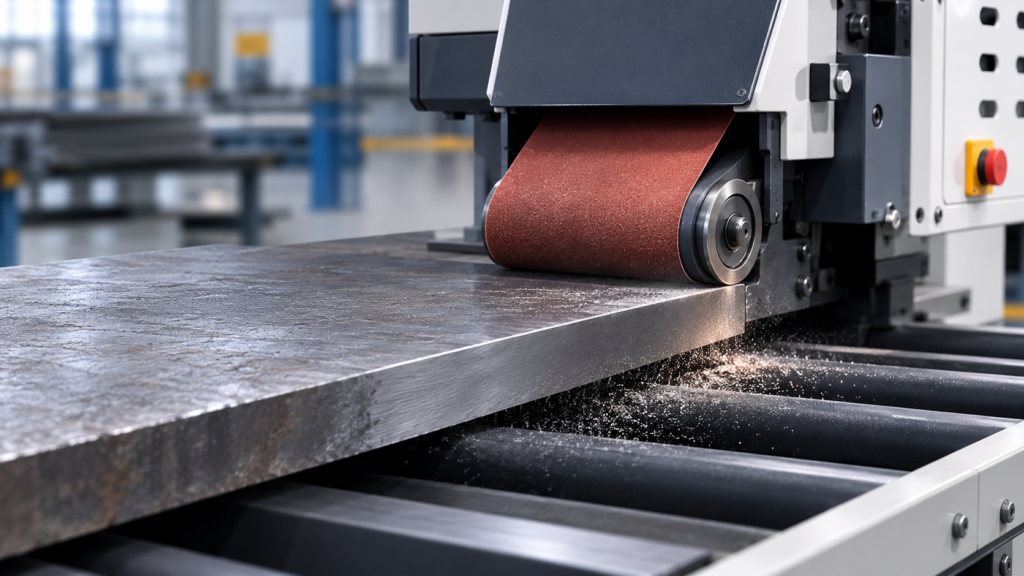

A belt sander machine wears the burr down evenly with a continuous abrasive belt, run at controlled speed and pressure across the plate edge or surface. It’s the pressure control that makes the difference. Grind by hand and pressure varies constantly; run it through a machine and it doesn’t.
The plate feeds in at a fixed rate, so contact pressure stays consistent along the full length of the burr. The abrasive belt, sized to the burr and matched to the material, takes material off in stages rather than one aggressive pass. Grit drops with each pass, taking the edge from rough removal to a finish that’s actually consistent from one end of the plate to the other.
Automated feed is what manual grinding can’t replicate on a long run. A person tires, drifts off angle, applies more pressure at the start of a shift than the end. A machine doesn’t. The Belt Sander Machine covers flat surfaces and edges up to 1,500mm wide, on plate from 0.5mm up to 80mm thick, so most heavy fabrication work stays on one machine instead of shuttling between stations.
Where Is Heavy Plate Deburring Used Across Industries?
Anywhere thick material gets cut, stamped, or machined before it moves to assembly or coating, someone downstream is dealing with the burr.
- Aerospace components, where chamfering sharp angles reduces stress concentration on structural parts
- Automotive fabrication, on chassis and structural steel edges
- Heavy machinery manufacturing, deburring load-bearing plates ahead of welding
- Architectural and structural steel, where a clean edge matters for anyone handling the part on-site
- Shipbuilding and industrial construction, where thick plate burrs are a genuine injury risk during assembly
Aerospace and automotive work leaves the least room for error here. One aerospace supplier working with IMachine cut quality rejection rates by more than 60% and rework time by 25% after moving from manual deburring to an automated line. That’s not a marketing number. That’s the difference between chasing rework every week and not.
What Should You Look For When Buying a Belt Sander Machine?
Buyers shopping for a belt sander machine tend to focus on speed and overlook the specs that actually determine whether the finish holds up under inspection.
- Plate width and thickness capacity. Check it against your heaviest job, not your average one.
- Adjustable belt speed. A fixed-speed machine will struggle the moment your material thickness varies, and it will show up as heat damage.
- Consistent automated feed. Manual feed just reintroduces the inconsistency you bought the machine to get rid of.
- Quick-change tooling. Belt swaps between jobs shouldn’t cost you shift time.
- Frame built for continuous industrial load. A heavy plate runs a machine hard. A lightweight frame won’t last.
- Compatibility with your existing line. Ask whether it connects to your current press or leveler without adding a separate handling step.
Belt Sander vs Edge Deburring Machine vs Automatic Deburring Machine: Which Fits Heavy Plates?
| Factor | Belt Sander Machine | Edge Deburring Machine | Automatic Deburring Machine |
| Best for | Flat surface and long-edge burrs on large plates | Precision chamfering and rounded corners | High-volume production runs |
| Operator involvement | Low, semi-automated feed | Low, precision-controlled sanding | Minimal, fully programmed |
| Finish consistency | High across long, straight edges | High on shaped or angled edges | Highest, repeatable across every batch |
| Ideal plate thickness | 0.5mm to 80mm | Thinner to mid-range plates needing exact angles | Any thickness within the programmed spec |
| Typical use case | General heavy plate deburring | Safety chamfering, joint prep | Continuous, repeat production |
An Edge Deburring Machine earns its place when the part needs a specific chamfer angle, not just a burr gone. For shops running consistent batch sizes, an Automatic Deburring Machine takes labour out of the equation almost entirely, since it holds the same programmed setting from the first part to the thousandth.
How Much Does Industrial Burr Removal Equipment Cost?
Pricing on a belt sander machine, or a broader Metal Deburring Machine setup, comes down to plate capacity, how automated it is, and whether you’re buying a standalone unit or a full finishing line.
A few things move the number:
- Width and thickness capacity. Machines rated for 80mm plate cost more than ones built for standard sheet.
- Automation level. Manual feed is cheaper to buy and more expensive to run, once labour cost stacks up over a year.
- Combined deburring and polishing. A single-pass system costs more upfront but removes a whole production step.
- Integration work. Connecting to an existing press or leveling line adds engineering cost at setup, not after.
Automation tends to win on total cost once rework is factored in. A 25% cut in rework time and a 60% drop in rejection rate, the numbers from IMachine’s aerospace project, pays back the equipment fast for any shop running steady volume.
How Can You Reduce Burr Formation After Cutting?
Every millimetre of burr you prevent at the cutting stage is a millimetre your Burr Removing Machine doesn’t have to grind off later. That’s less time per part and less wear on the belt.
- Keep cutting tools sharp. A dull blade or a worn laser lens tears the material instead of shearing it.
- Match cutting speed to thickness. Push thick plate through too fast and burr height climbs along with heat distortion.
- Hold punch and die clearance to tolerance. Worn tooling is one of the most common, and most overlooked, causes of oversized burrs.
- Set laser or plasma power for the specific alloy and thickness. A setting that works for mild steel won’t work the same on stainless.
- Check cut quality as you go, not after a whole batch fails downstream.
This won’t eliminate deburring. It just means your belt sander machine is cleaning up a smaller, more predictable burr instead of compensating for a cutting process that’s drifted out of spec.
Frequently Asked Questions :
Q1.Can a belt sander machine handle stainless steel without damaging the surface?
Yes, if the grit and speed are set correctly. Stainless work-hardens fast if the belt runs too aggressively, so the grit progression has to match the material, not just the burr size.
Q2.How thick a plate can typically go through a belt sander machine?
Industrial units built for heavy plate generally cover 0.5mm to 80mm, though exact capacity depends on the specific machine.
Q3.Is manual deburring ever acceptable for heavy plates in production?
For a one-off job or a prototype, sure. For repeat runs, manual work introduces inconsistency that eventually fails inspection, especially on aerospace or automotive contracts where tolerances don’t move.
Q4.Do I need separate machines for deburring and polishing?
Not always. Some finishing lines run both in one pass, which saves a step on parts headed straight for coating or final assembly.
Q5.How often does the abrasive belt need replacing?
Depends on material hardness and how many parts you’re running through it, but quick-change tooling on newer machines keeps a belt swap from eating into a shift.
